Robust High Breaking Capacity Modular Substations 630 kVA 800 kVA Harmonic Filtering Energy Station for Petroleum Refinery

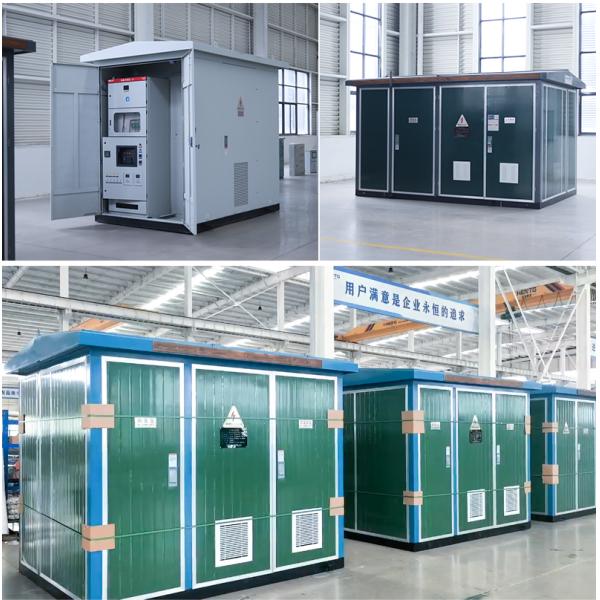

The Robust High Breaking Capacity Modular Substation (630kVA, 800kVA) is an elite, industrial-grade European prefabricated package transformer station, custom-engineered for petroleum refineries, petrochemical plants, and hazardous heavy industrial zones. This advanced energy power hub expertly integrates medium-voltage 6.6kV switchgear, an eco-friendly F-class cast resin dry-type transformer with advanced harmonic suppression, and high-breaking-capacity 380V low-voltage distribution panels within a heavy-duty, flame-retardant enclosure.

Explicitly configured to survive high-vibration, high-pollution, and volatile petrochemical environments, this grid-connected energy station guarantees ultra-stable power step-down, shielding upstream refinery control systems from severe electrical line disturbances.

• Active Harmonic Filtering Restoring Clean Refinery Power Quality: Equipped with reactive power compensation and active harmonic mitigation nodes. It smoothly absorbs current waveform distortions generated by heavy refinery pump drives and variable frequency adjusters, preventing control system failures.
• Zero-Fluid Cast Resin Tech Eradicating Hazardous Exploding Risks: By utilizing premium solid epoxy vacuum-cast dry-type transformer technology, this substation completely eliminates combustible mineral oil. It presents zero leak liabilities and zero fire spread hazards, adhering strictly to refinery safety mandates.
• Extreme High Breaking Capacity Defying Sudden Massive Fault Currents: The internal air circuit breakers and high-voltage vacuum switches feature exceptional breaking capacities. This ensures instantaneous fault isolation during abrupt refinery motor short-circuits, avoiding widespread industrial blackouts.
• Heavy Duty Modular Isolation Minimizing Hazardous Dust Ingress: The internal structure features independent, explosion-isolated compartments for Medium-Voltage, Transformer, and Low-Voltage configurations, preventing fault cross-contamination and providing absolute security for onsite industrial operators.

• Medium-Voltage Section (6.6kV Switchgear): Houses premier 6.6kV metal-clad vacuum circuit breakers (VCB) with exceptional interrupting metrics. Features comprehensive mechanical-electrical five-protection interlocking and rapid-response surge arresters to capture incoming lightning or line switches.
• Transformer Chamber (630kVA / 800kVA Dry Core): Features a high-grade 6.6kV to 380V cast resin dry-type transformer. The pure copper windings are entirely vacuum-cast in high-dielectric epoxy resin, delivering supreme mechanical rigidity and remarkable overload tolerance under 24/7 heavy petrochemical operations.
• Low-Voltage Section (380V Switchboard): Configured with high-breaking-capacity Air Circuit Breakers (ACB) and customized harmonic-shielded Molded Case Circuit Breakers (MCCB). Includes smart digital multi-function power analyzers with RS485 Modbus connections for immediate refinery SCADA integration.
• Intelligent Auto-Cooling Matrix: Powered by dual-channel automated forced cooling fan arrays driven by digital winding temperature monitors, paired with specialized dust-deflecting louvers to stabilize internal operating temperatures continuously.

Operating outdoor power utilities within desert-based African petroleum zones like Algeria, Libya, or Nigeria presents massive environmental impediments, specifically extreme airborne sand accumulation and persistent high temperatures.

Although implementing a solid dry-type transformer fully bypasses standard oil leakage troubles, fine abrasive desert sand particles still introduce severe operational predicaments. Heavy airborne sand layers settle inside the open cooling ducts of standard dry-type units, creating a dense thermal insulation blanket. This blanket blocks vital airflow, spiking winding heat, and accelerating partial discharge, leading to sudden insulation flashovers and grid failures under extreme African ambient heat.

1. Fully Closed Dust-Isolated Transformer Enclosure: The transformer chamber uses a strictly enclosed inner air-circulation system with specialized air-to-air heat exchangers. This prevents raw, grit-laden outside air from making direct contact with the resin-insulated coils.
2. Multi-Stage Labyrinth Louvers with Stainless Steel Micro-Filters: All cooling air intakes feature complex maze-structure louvers lined with high-density, washable stainless steel sand filters, capturing 96% of airborne micro-sand while maintaining premium thermal dynamics.
3. Anti-Tracking & Hydrophobic Coiled Coating: The 6.6kV transformer windings are finished with a specialized glossy, anti-static protective glaze. This slippery surface prevents fine dust particles from clinging to the coils, completely wiping out dust-triggered surface tracking vulnerabilities.
